Temperature sensor for very low temperatures

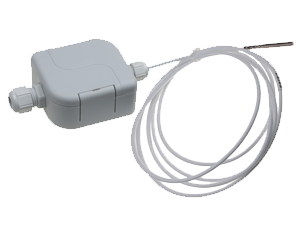

The probe in a stainless steel housing measures temperatures from -190°C to +200°C (-310°F to +392°F), accuracy +-0.2°C (Pt100).
The RS-485 converter is built into a wall-mountable, IP68 box. Operating temperature is -25°C to +80°C (-13°F to +176°F).
Typical applications include temperature measurement in the pharmaceutical industry or freezing plants.
| Environment: | Indoor or outdoor use - IP68, wall mount |
| Supplied probe: | External Pt100 sensor for low temperatures (stainless steel housing, 2m cable) |
| Temperature range of the supplied probe: | -190°C to +200°C (-310°F to +392°F) / 2m accuracy +-0.2°C |
| Operating temperature: | The converter works from -25 to +80°C (-13 to +158°F) |
| Interface: | RS-485, terminals |
| Compatible with: | Poseidon 1250 and 2250 |
| Power supply: | From the Poseidon (12V), or 8..28VDC |
ST-HW
