GSM Thermometer with E-mail (GPRS) and SMS alertsAres

  • Internal battery can supply power to HWg-Ares12 and its connected sensors for several hours.
  • Comfortable configuration over USB simplifies installation of the unit.
  • Remote firmware upgrade (FOTA) capability simplifies management of large-scale installations with hundreds of devices.
  • The "HWg-Ares12 Tset" quick start set contains a temperature sensor, an universal power adapter and an external antenna.
  • Whenever a power outage or a sensor value outside of a specified range is detected, Ares12 rings a specified number and sends a customizable e-mail or text message.
  • HWg-Ares is ready for data transfer over IP (GPRS) to third-party systems.

Order



Basic features

Basic features

  • GSM/GPRS: Quad-Band 850/900 / 1800/1900 MHz - SMA antenna connector
  • Configuration: Over USB, configuration utility on a "Mass storage" drive, no need to install
    • FW upgrade: Over USB, or FOTA (Firmware Over The Air) over GPRS
  • Power: 9–30 VDC / 0.5 A external power
    • Internal battery: Powers the device + sensors for 3–8 hours (depending on sensors)
    • Battery life: 5 to 12 years (depending on type, usage, and operating temperatures)
  • Flash log: 2 Mb / 170.000 records (e.g. 3 sensors @ 5 mins = 200 days)
  • DI (Digital Inputs): 2x DI (for dry contact status detectors), pulse counter (S0 pulses)
  • Sensors: 2xRJ11 for 1-Wire UNI
  • HWg-Ares12: Supports 3 sensors
  • HWg-Ares14: Supports 14 sensors
  • Diagnostics: External power detection, battery status [%]
  • Alarm alerts: Email, HWg-Push, SMS
  • SMS + ring upon alert: Supported
  • Protocols: SMTP, NTP, HWg Push (http)
  • Authentication: STARTTLS (Google SMTP)
  • SMS communication: Basic control with status information
  • Remote configuration: Web interface, tab „AresConf" in the SensDesk.com portal.
  • Roaming: Avoids GPRS communication while roaming away from the home GSM network
  • Mechanical: 76 x 93 x 28 mm, wall-mountable, fits on a DIN rail
  • Support for programmers: HWg SDK
  • Mobile application for data overview: Android and iPhone (via SensDesk.com)

Supported software

  • HWg-PDMS: Logging, export to MS Excel, reports
  • HWg-Push Nagios plugin
  • SensDesk.com public online portal
  Internal battery Digital inputs 1-Wire UNI sensors Logger SMS alerts Email alerts (GPRS) HWg Push (GPRS)
HWg-Ares12 ano 2 3 ano ano ano ano
HWg-Ares14 ano 2 14 ano ano ano ano

Usage example

Applications and usage examples

  • GPRS monitoring of a server room without connecting to the local LAN
  • Ares-usage
  • Diesel generators – environment and status monitoring
  • Back-up power supply systems
  • ATM (Automatic Teller Machines) environment monitoring
  • Cooling systems and coolers
  • Antennas and microwave links
  • Technology along roads, highways, or railroad tracks
  • Road surface or railroad track temperature and status
  • Temperature and displacement of structures
  • Storages of food or materials
  • Art exhibits and depositories
  • Agricultural production premises (greenhouses, granaries, etc.)
  • Electricity distribution networks (transformer stations, lines)
  • Water source monitoring, including technical equipment status
  • Monitoring of appliances with consumable, refillable content (vending machines for coffee, sandwiches or drinks, massage chairs, ...)

Pictures

Pictures

Ares: Environment monitoring over GSM/GPRS

Ares

  • HWg-Ares is a telemetry device suitable for integration with third-party central/portal solutions.
  • With the HWg-PDMS software, Ares can offer an instantly usable data collection solution.
  • Data outputs include logs+MS Excel analysis or a XML database.
  • Data collection over GSM with Ares can be combined with other IP sensors by HW group (Poseidon, Damocles, HWg-STE, HWg-PWR, and more).
  • Ares supports the same RJ11 sensors as the Poseidon family.
  • SMS notification of up to 5 recipients is advantageous for simple applications.
  • Text messages can be customized with macros.
  • Sensor or device status can be requested by texting or calling the device.
  • Configuration software needs no installation. Simply run the Windows application from the USB drive that appears after connecting Ares to an USB port.
    • The internal battery enables alerting to failed/restored power supply. Suitable for monitoring UPS and back-up generators.
    • Roaming functions reduce data costs outside of the home GSM network. Suitable for automotive or marine applications.

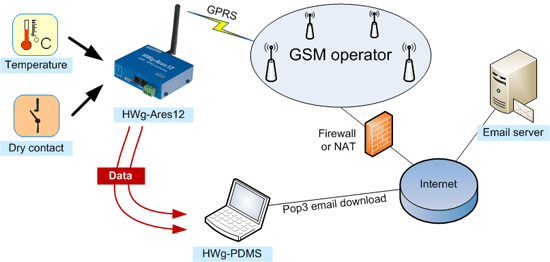

Data collection over e-mail

Ares-case-1

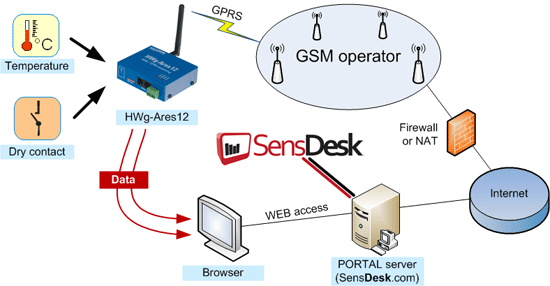

Data collection over HWg-Push to the SensDesk portal

Ares-case-2

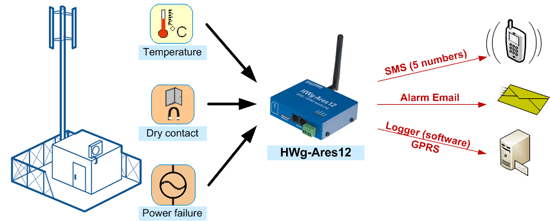

Remote telco site monitoring

Ares-case-3
