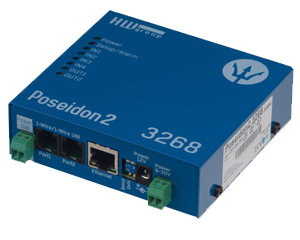

Ethernet I/O control and sensor monitoring systemposeidon2-3268

Poseidon2 3268 monitors up to 8 sensors, supports dry contacts (4x digital input) and can control relay outputs (2x digital output).
Supports SNMP, Modbus/TCP, XML, and can be connected to cloud online portal Sensdesk.com for free.

We supply temperature and humidity sensors (indoor/outdoor), light intensity sensors, DC/AC current and voltage converters. Digital Inputs can be connected to smoke detectors, power failure detectors, water flood detection, and more.

Poseidon2 sends an e-mail, a SNMP Trap, or a text message (SMS). The device can be accessed over the web, using a mobile phone app (Android, iPhone), or through an online portal.

Order



Product Parameters

Product Parameters

  • Ethernet: RJ45 (10/100 BASE-T)
  • WEB: Built-in web server
  • Data logger: Data logger for more than 250.000 records
  • Sensors: 2xRJ11 – max. 8 external sensors (1-Wire / 1-Wire UNI)
Can measure: humidity, voltage, current, 4-20mA, illumination, temperature (incl. Pt100, Pt1000) and many other quantities...
  • Digital inputs (DI): 4x DI for dry contacts (state detectors)
Supports: Door contacts, smoke detectors, 110/230V power supply detector, water leak detector, fan failure detector
  • Digital outpust (DO): 2x DO relay output (low-voltage NO/NC relay contact)
  • Power: 9-30V DC
  • Mechanical: Metal box, 100 x 94 x 25 [mm] (H x W x D) / 260 g – wall-mountable, fits on a DIN rail.
  • Warranty: 2 years
  • M2M communication protocols: SNMP, XML, Modbus/TCP, HWg-Push
  • Text messages (SMS): Alerts can be sent as text messages (SMS) via a remote HWg-SMS-GW over the network. No software is needed.
  • Support for programmers: HWg-SDK
  • Recommended online portal: SensDesk.com – free online portal

Supported software

  • HWg-Trigger: Control of other IP devices, alarm redirection to SMS
  • HWg-PDMS: Logging, export to MS Excel, reports
  • Third-party software (SCADA systems, Modbus/TCP)

Where to use

Where to use

  • Industrial applications
  • Remote monitoring of dry contacts, 4-20mA probes or Pt-100 and Pt-1000 temperature probes.
Data logger stores the values in the internal memory. Modbus/TCP protocol can be used for integration with SCADA systems.

  • Temperature alarms and a thermostat in IT
  • Switching HVAC / ventilation in a cabinet
  • Remote I/O control and monitoring over the Ethernet
  • Surveillance systems
  • Cooler and freezer m
  • Cooler and freezer monitoring + alarm indication
  • Temperature and other measurements in a cloud
  • Online web portal + mobile app
  • Smart buildings

Usage example

Usage example

  • Temperature alarms and a thermostat in IT
  • Sends an e-mail/SMS alert and turns on additional cooling or ventilation whenever the temperature is high.

  • Switching HVAC / ventilation in a cabinet
  • Detects open/closed door and controls the electronic lock.

  • Remote I/O control and monitoring over the Ethernet
  • Monitors a remote environment, sensor values can be fed into any SNMP system. Enables remote reading of dry contact inputs and remote control of relay outputs (to turn on HVAC, restart a server, start a diesel generator, ...).

  • Surveillance systems
  • Sensor readings and detector states can be fed to IP camera systems of various brands. Digital Outputs can be used to turn on the lights in a certain zone or open/close gates.

  • Industrial applications
  • Remote monitoring of dry contacts, 4-20mA probes or Pt-100 and Pt-1000 temperature probes.

    Data logger stores the values in the internal memory. Modbus/TCP protocol can be used for integration with SCADA systems.

  • Cooler and freezer monitoring + alarm indication
  • Measures temperature and humidity in a cooler or a freezer. When a value is out of a safe range, a relay output is activated to e.g. light up a warning light or sound a horn. Suitable for monitoring storages of food or pharmaceuticals. We recommend the PDMS software to monitor temperature.

  • Temperature and other measurements in a cloud
  • Poseidon2 remote monitoring device can be connected to cloud systems. Contact us for details.

  • Online web portal + mobile app
  • Poseidon2 can be connected to the SensDesk.com online portal. All sensors in an account can be viewed from anywhere using a web browser or a mobile app for Android and Apple.

  • Smart buildings
  • Sensor readings can be shared in several applications. Relay outputs can be controlled as remote I/O.



Usage

Pictures

Pictures

Controlling back-up A/C + remote environment monitoring system

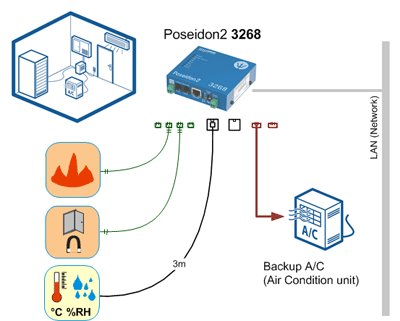

P2-3268-app1 AirCondition backup

  • When the main A/C fails (temperature in the room becomes too high), Poseidon2 3268 turns on back-up A/C and alerts the operator.
  • Remote environment monitoring (temperature, humidity, smoke detector, door contact).
  • A back-up A/C unit is controlled by a Poseidon2 3268 relay output (“thermostat” function).
  • When the temperature in the room exceeds a specified threshold, Poseidon2 sends a temperature alert - warning e-mail or SMS.
  • Smoke detector is powered directly from the power-out output of Poseidon2 3268.
  • SMS can be sent using the HWg-SMS-GW unit or the HWg-Trigger utility for Windows. It works as a temperature monitoring system.
  • Values are logged, the log can be displayed and processed e.g. in the HWg-PDMS utility for Windows.
  • Sensor system connected to a NMS (SNMP monitoring system) or SCADA (Modbus/TCP) system.


Connecting I/O over Ethernet

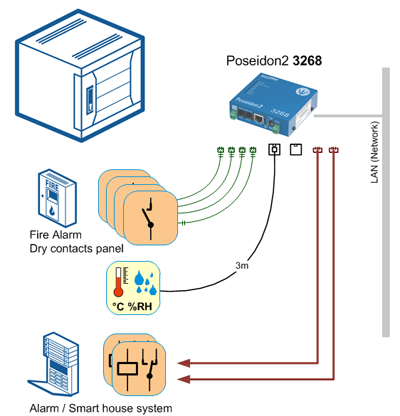

P2-3268-app2 IO over Ethernet

  • Poseidon2 3268 monitors the status of the connected fire alarm system. Alarms from individual zones are connected as dry contacts to Poseidon digital inputs.
  • More DI can be added to the standard 4 DI using the “Expander 4xDI 1W-UNI” unit, for a total of 8 or 12 dry contact digital inputs.
  • At the same time, Poseidon2 3268 measures temperature, humidity, and/or other quantities (light intensity, cabinet door contacts, voltage, etc.).
  • Poseidon2 3268 relay outputs can be connected to a security system or smart home control.
  • DI and sensor states can be easily connected to a SCADA system, a BMS (Building Management System), etc.
  • One Poseidon2 unit can be connected to multiple systems at once.


Connecting I/O to a CCTV system

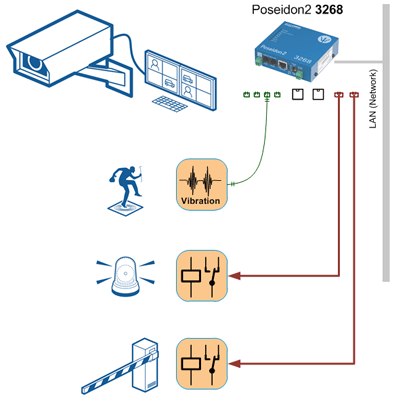

P2-3268-app3 Camera system IO sensors

  • External sensors, detectors, and output control are connected to a CCTV system using a Poseidon2 3268 unit.
  • Detects vibrations, smoke, or reacts to the output (Alarm) of a central security system.
  • A relay output can control an alarm horn.
  • A relay output controls a remote gate. The surveillance system operator authorizes entry/exit with a simple click.
  • A relay output can be used to turn on a lamp to illuminate a zone.
  • A sensor system monitored in IP video management system.
  • Some surveillance systems can accept sensor states.
  • For a list of supported systems, see Third-party industrial / SCADA solutions.
  • When needed, industrial sensors (4-20mA, 0-60V, 0-30A, ..) can be connected, too.

Comparation

Comparation of Poseidons

  Poseidon2 3266 Poseidon2 3268 Poseidon2 3468 Poseidon2 4002
Digital Inputs (DI) 4 DI 4 DI 4 DI 12 DI
Digital Outputs (DO)   2 DO (relay) 2 DO (relay 110/230V) 4 DO (relay)
1-Wire sensors 8 sensors 8 sensors 8 sensors 16 sensors
1-Wire UNI sensors ano ano ano ano
Industrial sensors - - - 24 sensors
Power 9-30V 9-30V 9-30V / -48V 9-30V
Logger capacity 250.000 records 250.000 records 250.000 records 250.000 records
HTML, XML, Flash setup ano ano ano ano
Modbus/TCP ano ano ano ano
SNMP, SNMP Traps ano ano ano ano
SMTP Email ano ano ano ano
Local SMS Alarms - - - ano
HWg-SMS-GW client ano ano ano ano
www.SensDesk.com ano ano ano ano
HWg-SDK for programmers ano ano ano ano
