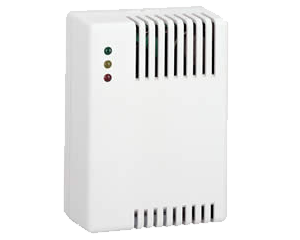

The detector GS-133 indicates flammable gas escape
The sensor detects all types of flammable gasses (natural gas, coalgas, propane, bottle-gas, acetylene, hydrogen, etc.) and offers 2 optional reactions according to gas concentration. 12V DC power supply.
The GS-133 detector indicates flammable gas escape. sensor detects all types of flammable gasses (natural gas, coalgas, propane, bottle-gas, acetylene, hydrogen, etc.) and offers 2 optional reactions according to gas concentration.
Product characteristics are great stability, high sensitivity, long lifetime and small dimensions. The device uses optical and acoustic signalization of gas escape. It is also equipped with relay with configurable function.
| Power supply: | 12V DC +-20% |
| Consumption: | 100mA |
| Switch relay consumption: | 150mA |
|
Operating conditions |
|
| Operating temperature: | -10°C to +40°C |
| Relative humidity: | 25 to 75% |
| Storage temperature: | -20°C to +50°C |
| IP code 30 | ( CSN EN 60 529 ) |
| Device lifetime: | minimum 5 years |
|
|
| Acoustic signalization: | 94dB/0.3m |
| Relay output: | 250V/5A (selectable response to 1. and 2. level) |
| Switch contact carrying capacity: | max. 230V / 5A |
| Recommended conductor cross-section: | 1.5mm2 |
| Stabilization time: | 60s |
| Detection method: | catalytic incineration |
| Warm-up period for clean air: | 30s |
| Warm-up period for standard calibration gas: | 30s |
| Response period: | max. 10s |
